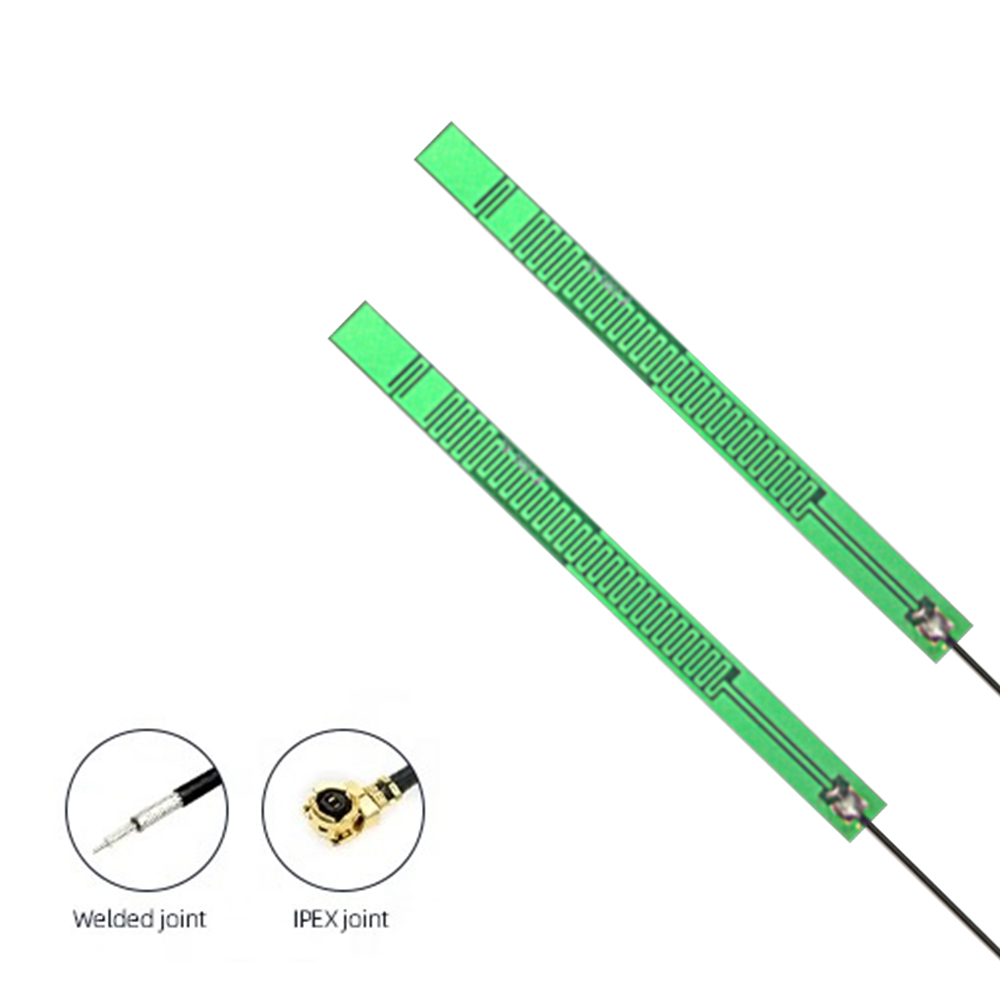

Built-in Rohs 5G 4G LTE 3G 2.4G WIFI 2G GSM Lora 433mhz 420-490Mhz IPEX U.FL Flexible FPC PCB Antenna
Overview
Inquiry
Related Products
1.Product Description
| Place of Origin: | China |
| Brand Name: | Signal Plus(OEM&ODM) |
| Model Number: | ZXLORA433I116X9 |
| Certification: | UL/ROHS/ISO14001/FC/ISO9001/EN… |
2.Business Terms Of The Product
| Minimum Order Quantity: | 10-1499/1500-3999/≥4000 |
| Packaging Details: | 1 pc packed in 1 independent poly bag ,and 20 pcs packed in 1 big bag.40 bags packed in 1 carton. |
| Delivery Time: | 14-30Lead time (days) |
| Payment Terms: | Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Accepted Delivery Terms: FOB, EXW；Accepted Payment Currency: USD, EUR, JPY, CAD,AUD, HKD, GBP, CNY, CHF;Accepted Payment Type: T/T, L/C, PayPal, WesternUnion; |
| Supply Ability: | 100000 |
3.Product Introduction
Description：Signal Plus Technology Co., Ltd is specializing in all kinds of antennas which applied to AP/router, fixed wireless phone, LTE CPE, GPS passive/active antenna, DVB, bluetooth and other internal and external antenna. We have two self-owned factories.

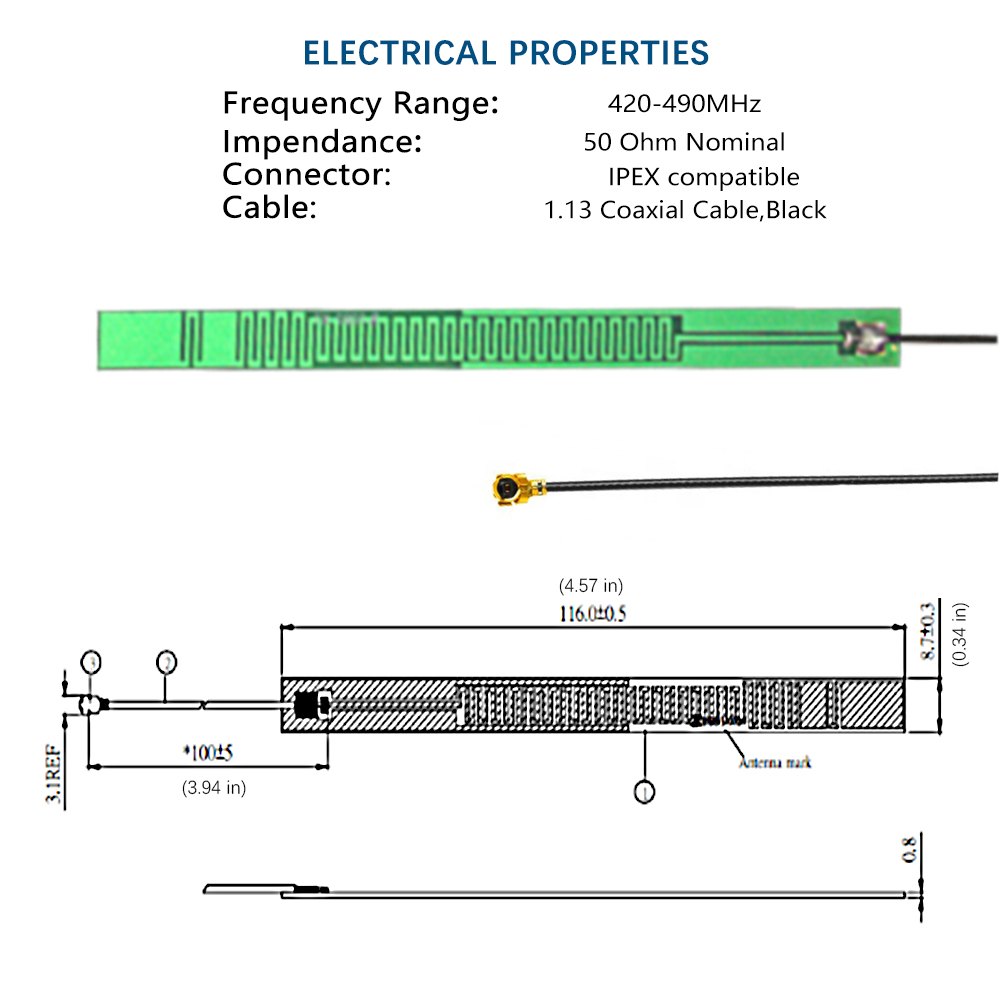

Specifications:
| Frequency Range | 420-490Mhz |
| Gain | 2dBi |
| VSWR | 2.5Max |
| Input power | 50ohm |
| Polarization | Vertical |
| Cable | 1.13 |
| Connector | IPEX/UFL |
| Color | Customized Color |

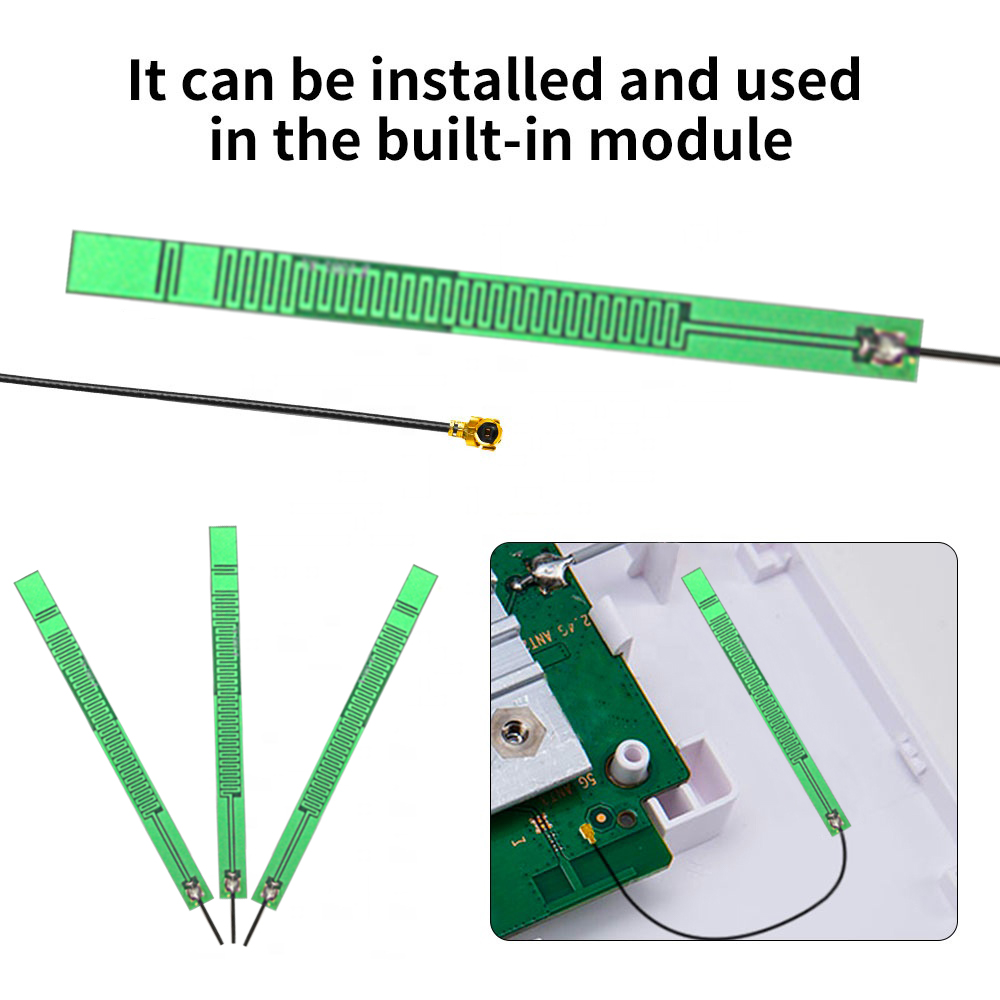

Applications: Wireless bridge or Industrial router or Wreless digital radio station or Intelligent metering or Wireless module or lmage transmiss or Router or GPON or Drone
