New Design 2.4G High Gain Rubber Stick WiFi Dual Band Antenna 2DBi 3DBi 5Dbi 7Dbi 9Dbi SMA Antennas

New Design 2.4G High Gain Rubber Stick WiFi Dual Band Antenna 2DBi 3DBi 5Dbi 7Dbi 9Dbi SMA Antennas

OEM & ODM

1.Provide a variety of connectors to fit different devices.

2. The signal coverage area can be adjusted according to design requirements.

3. It has a relatively high gain and can enhance the signal strength.

4. With a unique appearance design, it has higher recognizability.

5. Customized design to meet the reliable communication requirements of devices in complex industrial environments.

6. It features installation flexibility and good compatibility.

Inquiry Download

Overview
Inquiry
Related Products

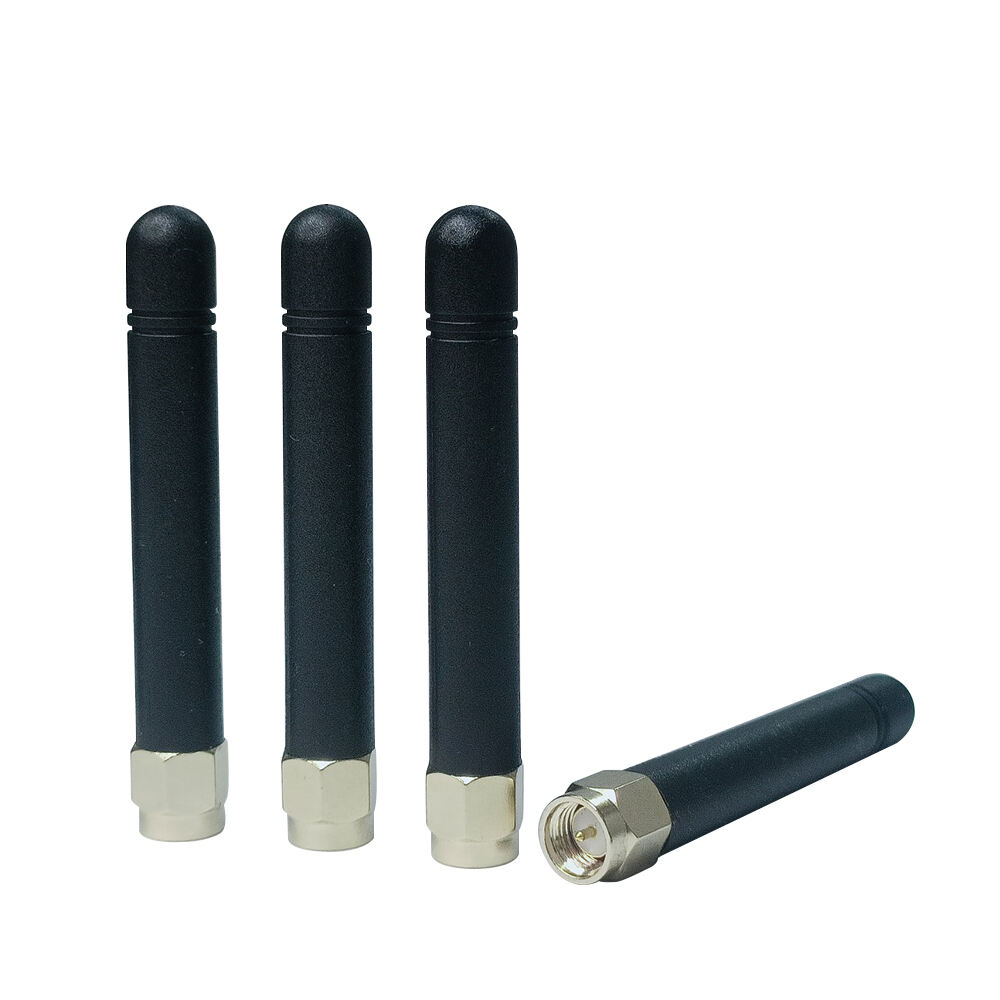

ZX-WiFiE50 2.4G Rubber Stick WiFi Dual Band Antenna

Antennas are typically omnidirectional. When installed vertically, the signal radiation is more uniform. Avoid interference from metal objects, walls, or electrical devices, and it is recommended to position the antenna higher than the top of the equipment.

1.Product Description

Frequency Range	2400-2500MHz
Gain	3dBi
Impedance	50ohm
VSWR	2.0 Max
Connector	SMA
Material	TPEE

Precautions:
- Confirm the device operates in the 2.4GHz band (2400–2483.5MHz)—otherwise, efficiency will degrade.
- High-gain antennas (e.g., 5dBi) are suitable for long-range use, but may sacrifice vertical coverage—select based on the scenario.
- For MIMO-supported devices (e.g., Wi-Fi 6), maintain an antenna spacing of ≥λ/2 (~6 cm) to minimize interference.
- Ensure antenna connectors (e.g., SMA, RP-SMA) are compatible with the device—forcing mismatched connectors may cause damage.
- Some antennas have limited temperature tolerance (e.g., -20°C to 60°C)—use industrial-grade products in extreme environments.
